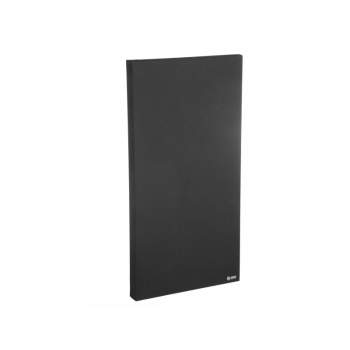

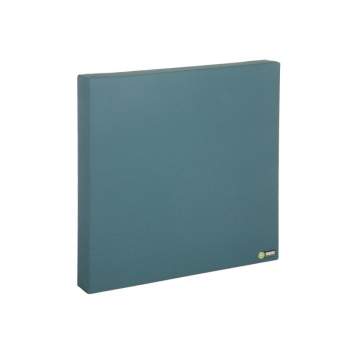

An acoustic panel with a thickness of 80 mm in two basic sizes: 120x60 and 60x60. With a wood structure and sound-absorbent core made from synthetic fibre and acoustic fabric. Standard acoustic fabric range in 8 colours and 23 other optional colours.
FREE SHIPPING FOR SPAIN
On orders from € 600 for the Peninsula and the Balearic Islands. For rest of Europe please contact
PERMANENT STOCK
More than 1000 m2 for products storage. Custom manufacture available.
SECURE PAYMENT
Pay with Mastercard / Visa. BBK
The JJM 080 acoustic panel is a sound speed absorbent panel with a thickness of 80 mm, built professionally and with excellent broadband sound absorption qualities, meaning it can work throughout the entire range of frequencies. It is the ideal option for the acoustic treatment of primary sound reflection points and the elimination of flutter echo.
|

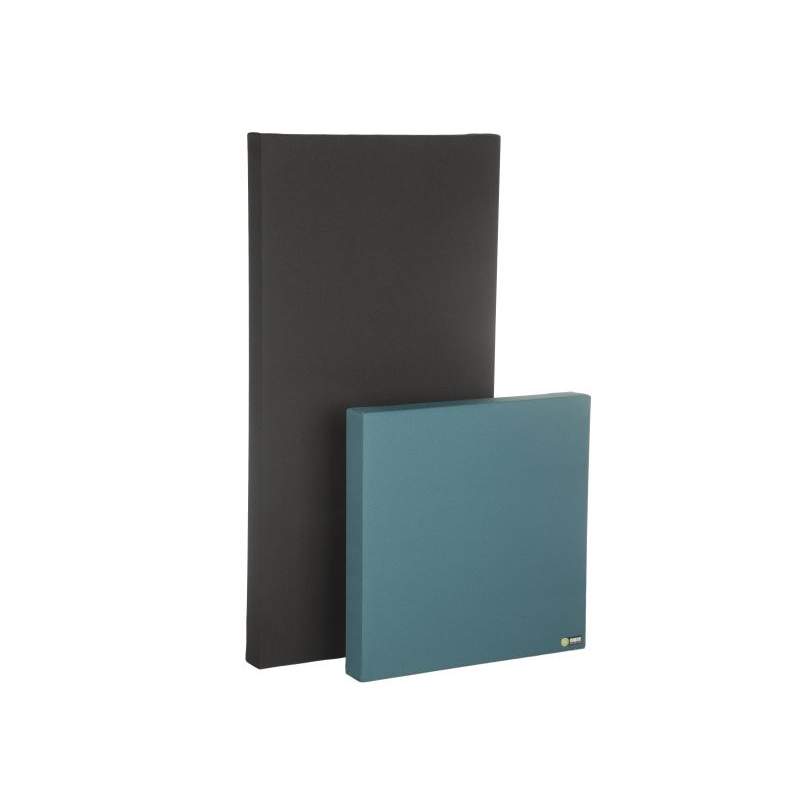

The JJM 080 acoustic panels are made from a rigid wood structure that incorporates a set of eyebolts so that they can easily be hung on walls or ceilings. As easy to install as hanging a picture. They are supplied in two basic formats; 120 x 60 cm and 60 x 60 cm, for adaptation to most areas and they can be made to size, depending on the specific characteristics of each area. |
 |
Our JJM 080 acoustic panel is the most versatile option for correcting reverberation and controlling primary / secondary sound reflections, dramatically improving clarity in rooms where precise sound control is required by means of a professional, high quality product with a pleasing appearance.
These panels are widely used for soundproofing in control rooms, test rooms, high-end environments and cinema theatres.
Their high acoustic performance, versatility in installation and multiple finish options not only bring benefits in musical production environments, but also make them very useful in ensuring acoustic comfort in restaurants, hotels, offices, offices, classrooms, churches, etc.
The JJM acoustic panels are usually shipped within 5-7 working days for standard fabrics. However, when our plant is busy, orders may take up to 10-15 days to process. Please don´t wait until the last minute to place your order!
The JJM panels are usually installed vertically, horizontally or hung.
See the ‘INSTALLATION tab for more details of each option.
| Standard fabrics: | |||
|---|---|---|---|
 |
 |
 |
|
| Havana | Blizzard | Slip | |
 |
 |
 |
|
| Optional fabrics (surcharge per panel: + 8€) : | |||||
|---|---|---|---|---|---|
 |
 |
 |
 |
 |
|
| Solano | Lobster | Belize | Tortuga | Bridgetown | |
 |
 |
 |
 |
 |
|
| Tequila | Sandstorm | Oyster | Rum | Buru | |
 |
 |
 |
 |
 |
|
| Martinique | Marianna | Bluebell | Scuba | Steel | |
 |
 |
 |
 |
 |
|
Our engineers are at your disposal to offer you advice and tips about the most appropriate acoustic design for your particular case. Please don’t hesitate to ask us!
Physical properties |
Technical Drawing | |
|---|---|---|
| Description: Acoustic panel with fabric Material: Wood structure, sound-absorbent core made from synthetic fibre Finishing: Acoustic fabric 100% recycled polyester Colours: 31 fabrics to choose, 8 standar + 23 optional Certificates: OEKO-TEX Standard 100 Fire rating:
|
 |
Absorption coefficients in octave bands (ISO 354):
| 125 Hz | 250 Hz | 500 Hz | 1 kHz | 2 kHz |
|---|---|---|---|---|
* absorption coefficients in third octave are available in the data sheet.
Global coefficients:
| NRC |
|---|
| SAA |
| α mid |
| α w |
Installation
The JJM panels can be easily and quickly installed by either hanging them on the wall or the ceiling like a picture using our assembly kits.

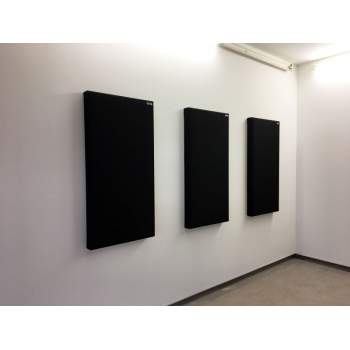

Wall mount – vertical position
Use the plugs and hooks supplied with the panel to install them LIKE A PICTURE. Fasten the hooks to the wall leaving a space of 50 cm between each.
Wall mount – horizontal position
For this type of assembly, the standard eyebolts of the panel structure have been replaced with perforations that enable the panels to be hung from the hooks. This way, the hooks are fastened to the wall leaving a space of 58.5 cm between each.
Ceiling mount – hanging kit (+ 10,75€)
The ceiling mount kit includes adjustable systems to hang the panels from the ceiling with a margin of 5 cm – 10 cm from the ceiling. In addition, the system allows the height to be adjusted individually in each fastening, with the option of installing the panel with the desired inclination, depending on the case.
For this installation system, fasten the 4 eyebolts included in the kit to the ceiling, creating a grid with a separation of 50 cm and 58.5 cm, respectively.
